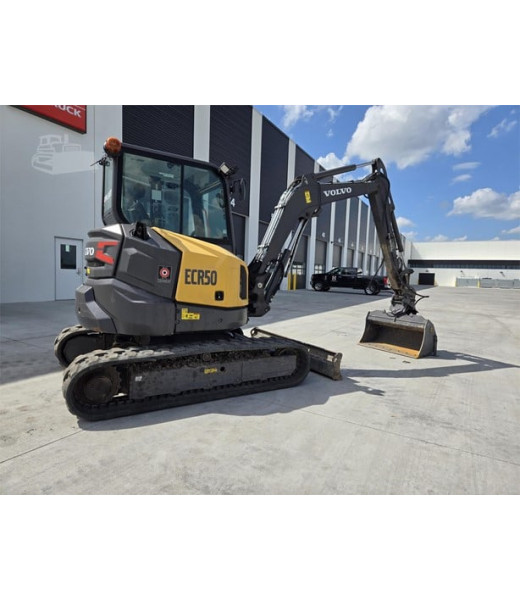

The Volvo EC50 is a compact excavator designed for versatile operations in various construction, landscaping, and earth-moving tasks. Here are its key features:
| Engine Model | Volvo D2.6H |
|---|---|
| Power | Approximately 50 hp (37 kW) at 2,200 rpm |
| Torque | 180 Nm |
| Operating Weight | Approximately 5,200 kg (11,464 lbs) |
| Bucket Capacity | Standard bucket: 0.12 - 0.15 m³ (0.16 - 0.20 yd³) |
| Digging Depth | Maximum digging depth: About 3,200 mm (10 ft 6 in) |
| Maximum reach at ground level | Approximately 5,600 mm (18 ft 4 in) |
| Swing Radius | Tail swing radius: About 1,360 mm (4 ft 6 in) |
| Hydraulic System: Maximum pump flow | Approximately 60 l/min (15.9 gal/min) |
| Operating pressure | Around 200 bar (2,900 psi) |
| Travel Speed | Approximately 5.5 km/h (3.4 mph) |
| Overall length | About 4,600 mm (15 ft 1 in) |
| Overall width | Approximately 1,500 mm (4 ft 11 in) |
| Overall height | Approximately 2,450 mm (8 ft 1 in) |
