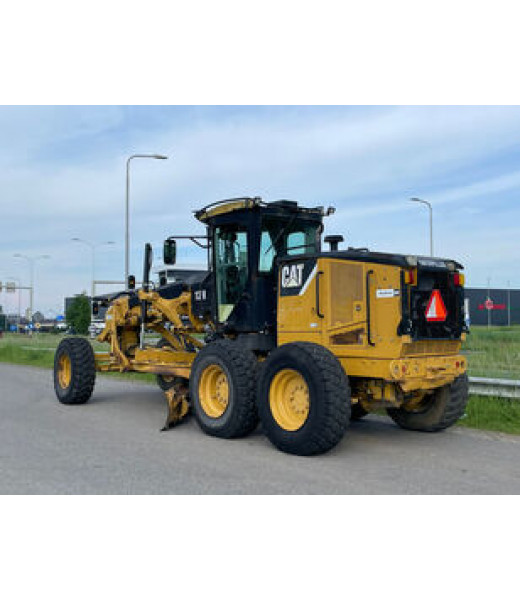

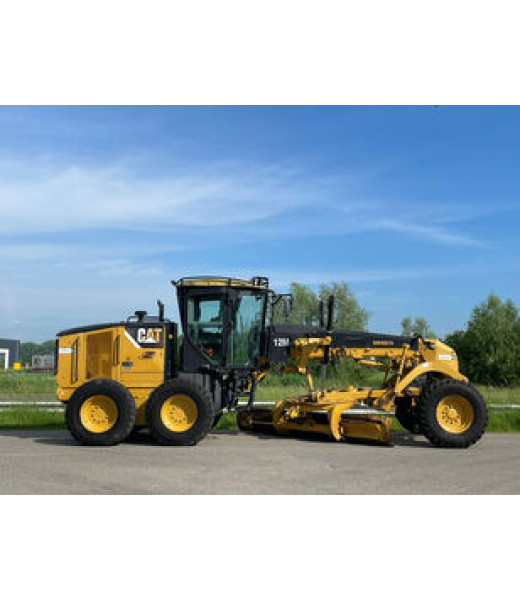

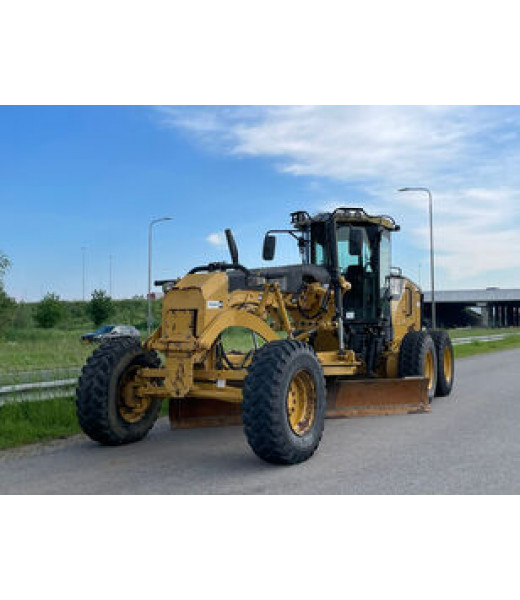

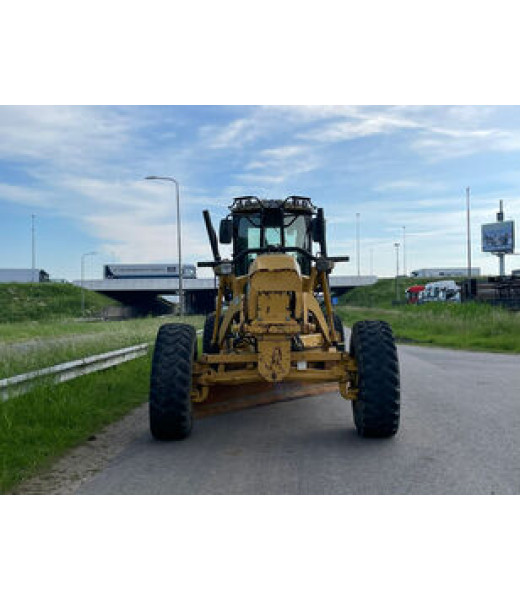

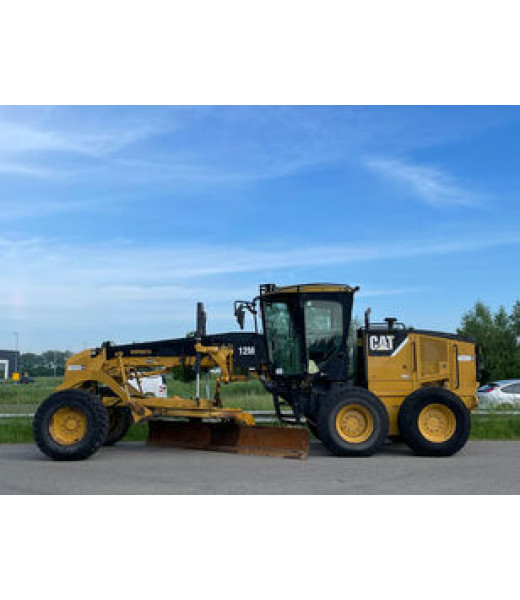

The Caterpillar 12M motor grader combines advanced technology and design to deliver exceptional performance in road construction, maintenance, and other grading applications. Equipped with a reliable Cat C9.3B engine, it provides efficient power and torque, ensuring smooth operation across various terrains.
| Engine Model | Cat C9.3B |
|---|---|
| Net Power | 200 hp (149 kW) |
| Displacement | 9.3 L (568 in³) |
| Fuel Tank Capacity | 118 gallons (447 L) |
| Overall Length | 27 ft 9 in (8,460 mm) |
| Overall Width | 8 ft 6 in (2,590 mm) |
| Overall Height | 10 ft 6 in (3,200 mm) |
| Wheelbase | 20 ft 6 in (6,250 mm) |
| Ground Clearance | 16.5 in (420 mm) |
| Hydraulic System | Load-sensing, closed-center system |
| Pump Output | 46 gpm (174 L/min) |
| Standard Tire Size | 14.00-24 |
